Standard Multiple Position Fork

Item#: 61614
Brand: Sunrise Medical
Sku: Parts-4-Quickie-Q7-STANDARD-MULTIPLE-POSITION-FORK-

Item#: 61614
Brand: Sunrise Medical
Sku: Parts-4-Quickie-Q7-STANDARD-MULTIPLE-POSITION-FORK-

0 reviews

Availability:

Chat live with a product specialist

Skip to the beginning of the images gallery

Description

Return Policy

Returns Policy

Unfortunately, we can not accept returns on this product. Items damaged during delivery or sent incorrectly will be fixed or replaced at 1800wheelchair.com’s expense.

See our full return policy here.

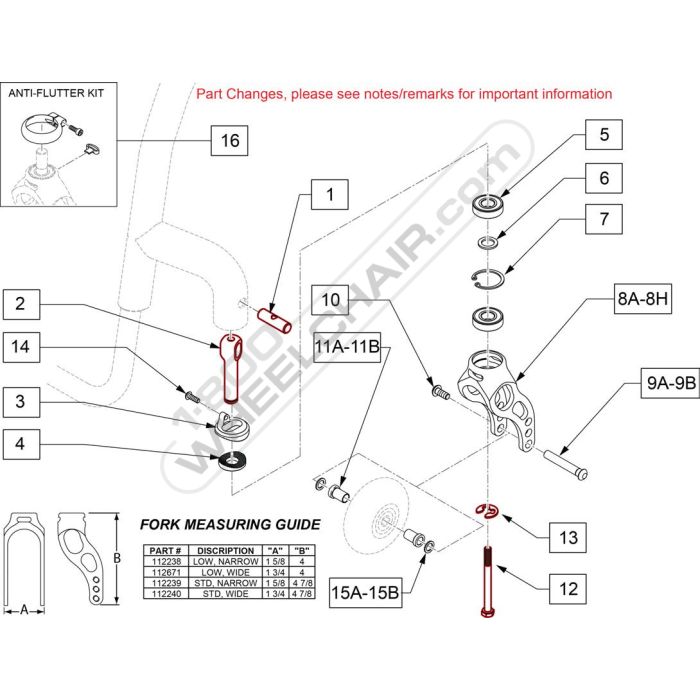

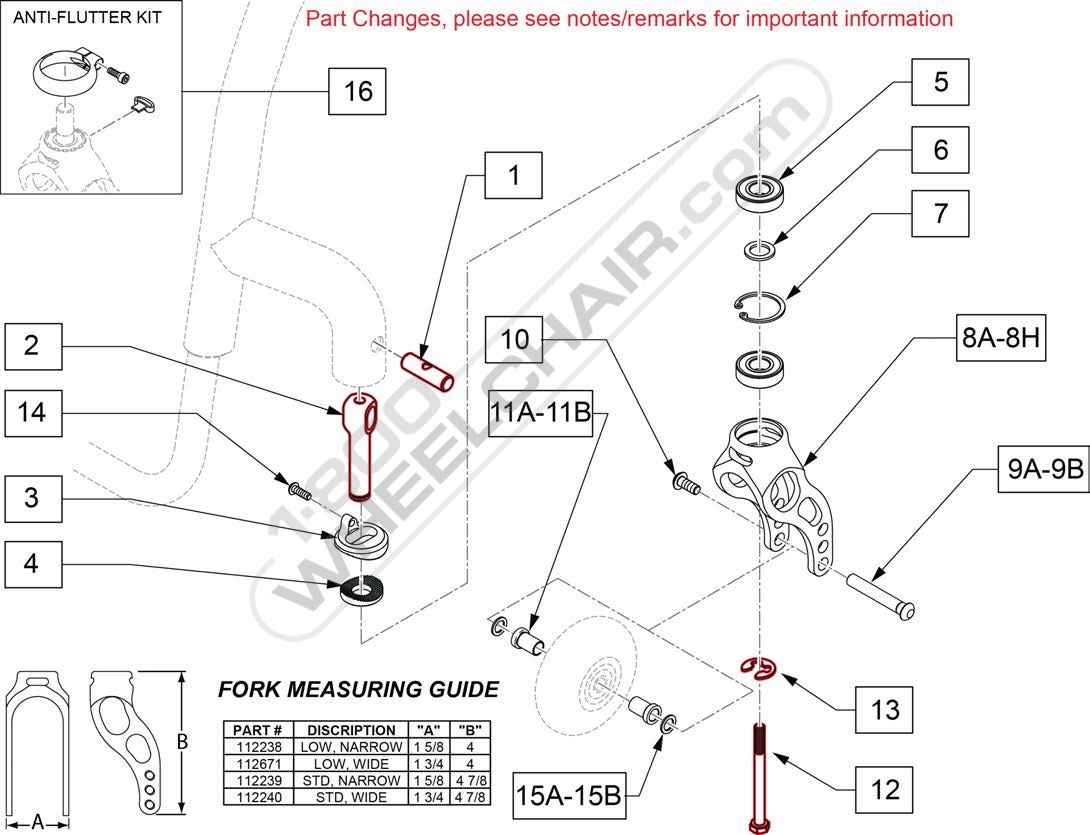

Standard Multiple Position Fork

Grouped product items
Position	Pos.	SKU	Description	Notes	Price	Qty
See Fork Stem & 1	123396	PIVOT PIN, SOLID 3-5 days	Pin Kits for orderable parts	$44	- +
2	123397	CASTER STEM, ADJ, HOLLOW 3-5 days	See Fork Stem & Pin Kits for orderable parts	$84	- +
3	110163	HELIUM COMBI SPLINE 3-5 days		$80	- +
6	265162	WSHR FLT 18MM OD 12MM ID 1.5MM 3-5 days		$41	- +
7	342093	RING SNAP INTERNAL 28MM 3-5 days		$41	- +
5-8A	112238	ASSM FORK LOW NARROW INTG BRG 3-5 days	lighted,4' Low	$100	- +
5-8B	112671	ASSM FORK LOW WIDE INTG BRG 3-5 days	Soft Roll,4x1.25	$100	- +
5-8C	112239	ASSM FORK STD NARROW INTG BRG 3-5 days	Black-Fits 5" Low Profile Poly,5" Micro Lighted	$100	- +
5-8D	112240	ASSM FORK STD WIDE INTG BRG 3-5 days	Roll,5x1.5 Alu Soft	$100	- +
5-8E	117172S	FORK LOW NRW CSTM ANO W/BRG 3-5 days	3" Micro,3" Micro	$0	- +	Please call or Send Request For Information
5-8F	117173S	FORK LOW WD CSTM ANO W/BRG 3-5 days	Choose custom anodized color-Fits 3x1.5 Alu Soft Roll	$0	- +	Please call or Send Request For Information
5-8G	117174S	FORK STD NRW CSTM ANO W/BRG 3-5 days	5x1 Alu Poly, 5x1.5	$0	- +	Please call or Send Request For Information
5-8H	117175S	FORK STD WD CSTM ANO W/BRG 3-5 days	5x1 Alu Poly, 5x1.5	$0	- +	Please call or Send Request For Information
9A	112783	AXLE CASTER NARROW 1/4" 3-5 days	Used w/ Narrow Forks Only.	$43	- +
9B	112782	AXLE CASTER WIDE 1/4" 3-5 days	Used w/ Wide Forks Only.	$43	- +
10	102259-001	BHCS M5 X .8 X 12 W/PL INORG 3-5 days		$40	- +
11A	112781	SPACER, CASTER NARROW, INTEGRAL 3-5 days	Used w/ Narrow Forks Only.	$41	- +
11B	112780	SPACER, CASTER WIDE, INTEGRAL 3-5 days	Used w/ Wide Forks Only.	$41	- +
12	230063	HHCS M6 x 1.0 x 70 3-5 days	See Fork Stem & Pin Kits for orderable parts	$40	- +
13	114479	E-STYLE BOWED CLIP 3-5 days	See Fork Stem & Pin Kits for orderable parts	$42	- +
14	102257	BHCS,M4X0.7X8,FULL,NP 3-5 days		$39	- +
15A	107357	WASHER SPLIT LOCK M5 ROHS 3-5 days		$40	- +
15B	106947	5/16 AN WASHER FLAT THIN 3-5 days	Use w/ micro light casters only	$39	- +
16	120957	ANTI FLUTTER KIT W/ INSTR 3-5 days	Standard Wide and	$69	- +
17	113403	6MM ALLEN WRENCH L, 7MM SHORT 3-5 days	Required to remove old stem bolt	$43	- +
1-8A,9A,10,11A-16	114429	FORK LOW NARROW Q7 ASSM 3-5 days	lighted,4' Low	$172	- +
1-8B,9B,10,11B-16	114430	FORK LOW WIDE Q7 ASSM 3-5 days	Soft Roll,4x1.25	$172	- +
1-8C,9A,10,11A-16	114431	FORK STD NARROW Q7 ASSM 3-5 days	Profile Poly,5" Micro	$172	- +
1-8D,9B,10,11B-16	114432	FORK STD WIDE Q7 ASSM 3-5 days	Roll,5x1.5 Alu Soft	$258	- +
1,2,12,13	124999	FORK STEM & PIN KIT PAIR 3-5 days	Pair	$163	- +
1,2,12,13	125045	FORK STEM & PIN KIT 1 SIDE 3-5 days	one side only	$109	- +
3,4,14	125046	FORK SPLINE ADJ KIT 1 SIDE 3-5 days	one side only	$80	- +
