Pulsewiring

Item#: 59058
Brand: Sunrise Medical
Sku: Parts-4-pulse-6-PULSEWIRING

Item#: 59058
Brand: Sunrise Medical
Sku: Parts-4-pulse-6-PULSEWIRING

0 reviews

Availability:

Chat live with a product specialist

Skip to the beginning of the images gallery

Description

Return Policy

Returns Policy

Unfortunately, we can not accept returns on this product. Items damaged during delivery or sent incorrectly will be fixed or replaced at 1800wheelchair.com’s expense.

See our full return policy here.

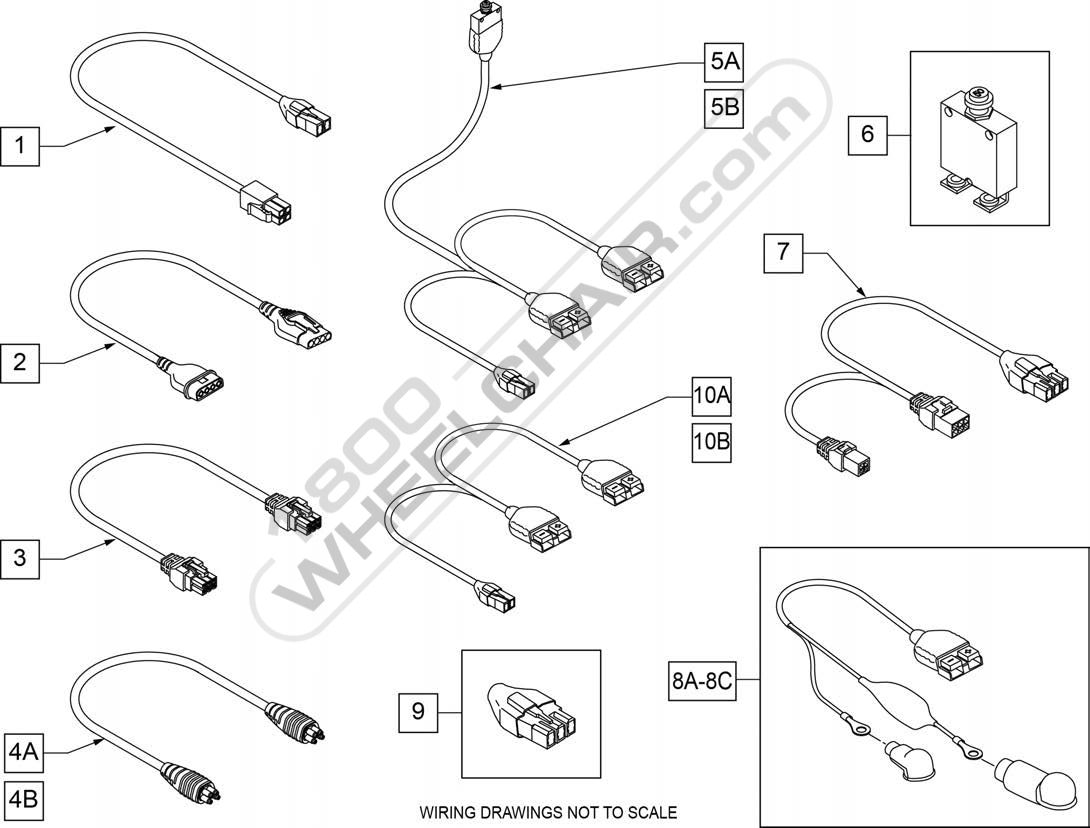

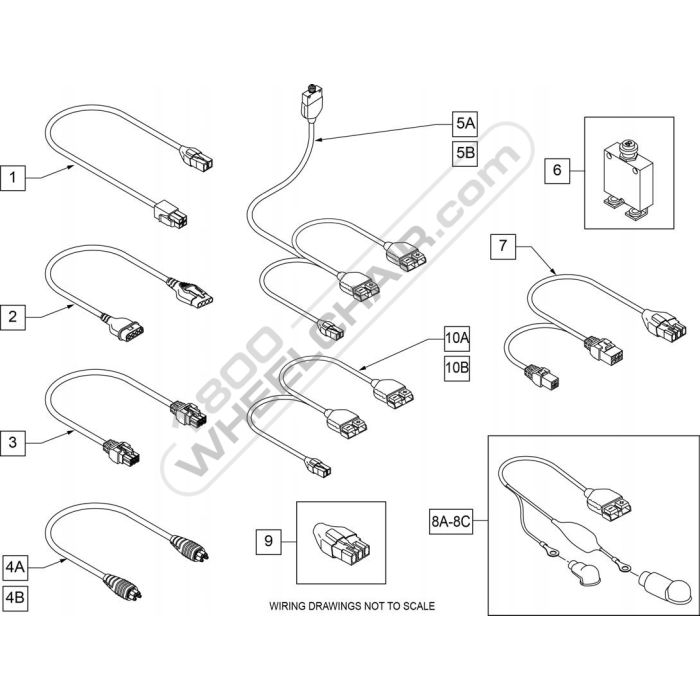

Pulsewiring

Grouped product items
Position	Pos.	SKU	Description	Notes	Price	Qty
1	111438-010	HARN VR2 DRIVE THRU ACT 100MM 3-5 days	Used w/ thru drive chairs only(Power Harness to Base Tilt Harness)	$51.13	- +
2	101626	CONTROLLER HARNESS 3-5 days	Used w/ VR2 chairs only(Controller to Jooystick)	$75.23	- +
3	020063-070	HARNESS DELPHI ACTUATOR 700mm 3-5 days		$41.31	- +
15	108316-050	HARNESS R-NET BUS 500MM 3-5 days	Used w/ Rnet Electronics Only	$97.54	- +
4B	108316-120	HARNESS R-NET BUS 1200MM 3-5 days	Rnet Joystick EXT (Dist block to Joystick, Omni or Attendant Control	$91.29	- +
4C	108316-150	HARNESS R-NET BUS 1500 MM 3-5 days	Rnet Joystick EXT (Dist block to Joystick, Omni or Attendant Control	$97.54	- +
5A	103737-001	HARN MAIN POWER VR2 SHUTTLE 3-5 days	VR2 Power Harness Used prior to S/N PLS-100809	$110.93	- +
5B	103738-001	HARNESS MAIN POWER RNET SHUTTLE 3-5 days	Rnet Power Harness Used prior to S/N PLS-100808	$110.93	- +
6	133020	CIRCUIT BREAKER 50 AMP 3-5 days	Used on all chairs prior to S/N PLS-100808	$41.31	- +
7	104977-020	HARN ADPT ACT TO VR2 200MM 3-5 days	Used on all tilt chairs except switch driven tilt/ELRs	$61.84	- +
8A	103954	HARNESS BATTERY HIGH GP22/24 3-5 days	Battery Harness (Red) Used only prior to S/N PLS-100808	$61.84	- +
8B	109402	HARNESS BATTERY HIGH 150 DEG 3-5 days	Battery Harness (Red) Compatible with all Pulse	$97.54	- +
8C	109403	HARNESS BATTERY LOW 150 DEG 3-5 days	Battery Harness (Black) Compatible with all Pulse	$97.54	- +
9	109324	HARNESS INHIBIT3 SHORTING PLUG 3-5 days	Used w/ Rnet non-tilt chairs(Plugs into Motor Controller)	$0	- +	Please call or Send Request For Information
10A	116289	HARNESS VR2 W/O 3-5 days	VR2 Power Harness used after S/N PLS-100809	$110.93	- +
10B	112768	HARNESS MAIN RHYTHM 150 DEG 3-5 days	Rnet Power Harness used after S/N PLS-100808	$93.08	- +
