Parts for Nova 309 Transport Chair

Item#: 53177
Brand: Nova
Sku: 309-Transport-Chair-Parts

Item#: 53177
Brand: Nova
Sku: 309-Transport-Chair-Parts

0 reviews

Availability:

Chat live with a product specialist

Skip to the beginning of the images gallery

Description

Return Policy

Returns Policy

Unfortunately, we can not accept returns on this product. Items damaged during delivery or sent incorrectly will be fixed or replaced at 1800wheelchair.com’s expense.

See our full return policy here.

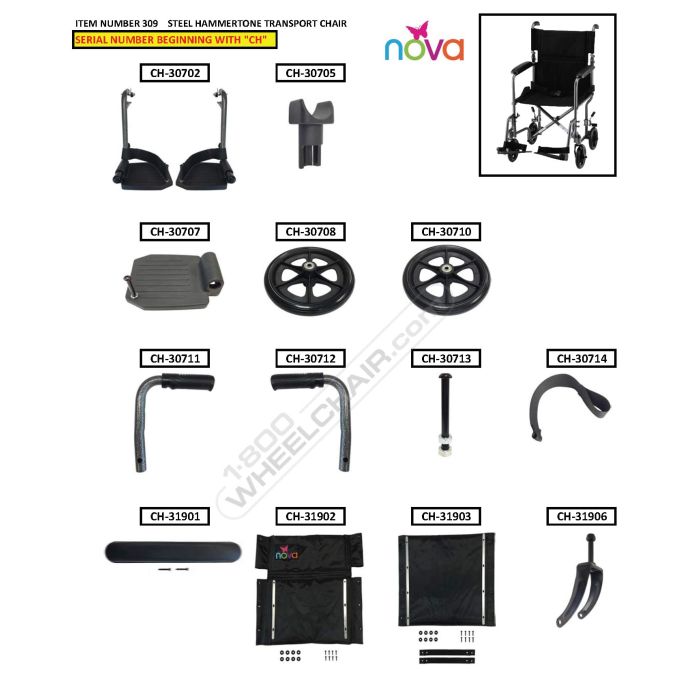

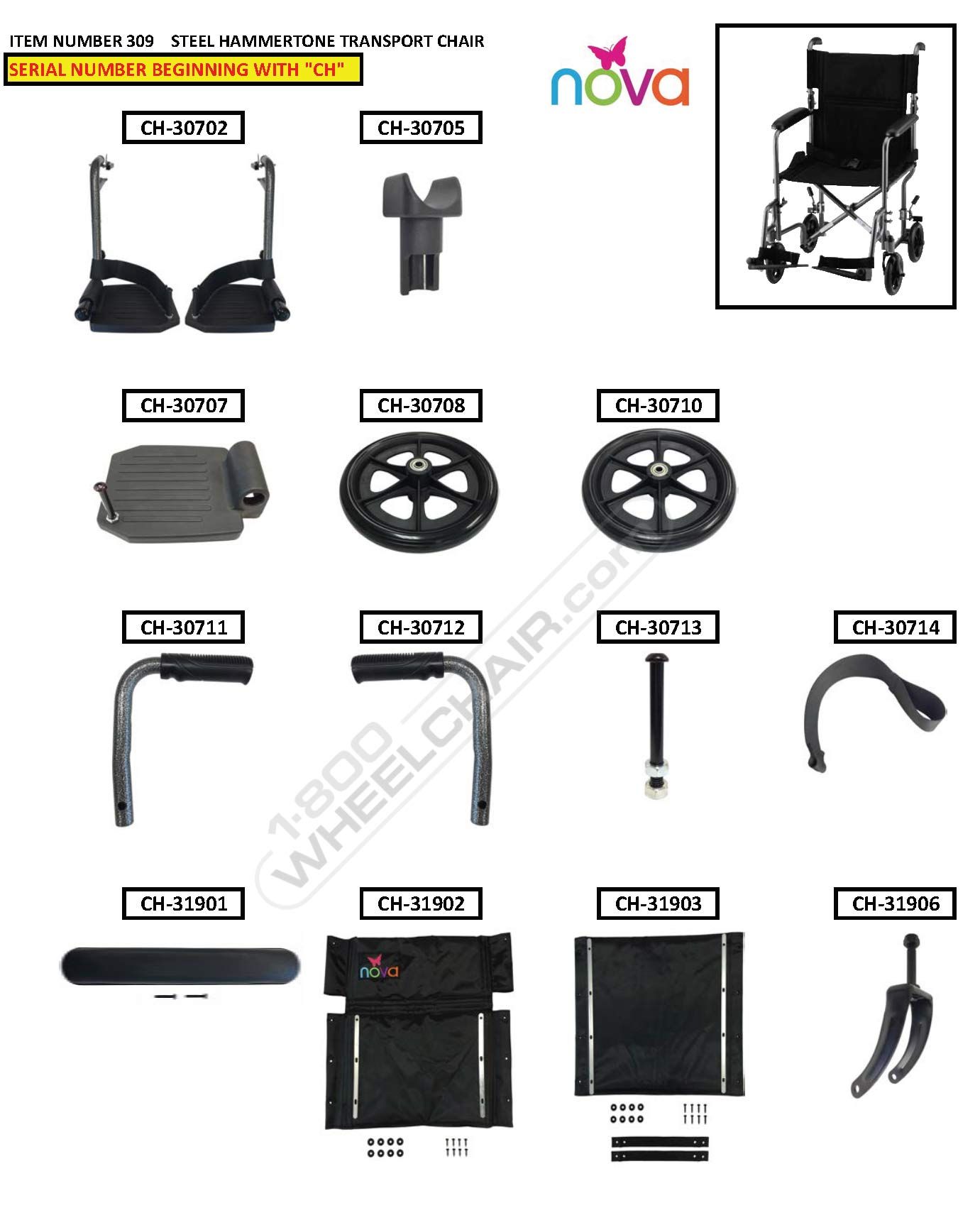

Many of the parts pictured on this breakdown may look identical to the part or parts needed but the measurements may be different and will not be interchangeable. Please check the serial number on your transport chair and make sure it corresponds with the serial number on this part diagram highlighted in yellow. The serial numbers on our transport chairs are located on a sticker on the crossbar under the seat as shown in the picture below.

Grouped product items
Position	Pos.	SKU	Description	Notes	Price
CH-30702	CH-30702	FOOT REST HAMMERTONE 3-5 days	PAIR	$67	- +
CH-30705	CH-30705	SEAT GLIDE FRONT AND REAR 3-5 days		$20	- +
CH-30707	CH-30707	FOOT PLATE (INCLUDES SCREW FOR HEEL STRAP) 3-5 days		$42	- +
CH-30708	CH-30708	WHEEL FRONT 3-5 days		$38	- +
CH-30710	CH-30710	WHEEL REAR 3-5 days		$38	- +
CH-30711	CH-30711	HANDLE BAR LEFT HAMMERTONE 3-5 days		$140	- +
CH-30712	CH-30712	HANDLE BAR RIGHT HAMMERTONE 3-5 days		$140	- +
CH-30713	CH-30713	SCREW FOR FOOT PLATE/HEEL STRAP 3-5 days		$15	- +
CH-30714	CH-30714	HEEL STRAP 3-5 days		$140	- +
CH-31901	CH-31901	Armpad both sides 3-5 days		$30	- +
CH-31902	CH-31902	BACK UPHOLSTERY BLACK (INCLUDES SCREWS) 3-5 days		$42	- +
CH-31903	CH-31903	SEAT UPHOLSTERY BLACK (INCLUDES SCREWS) 3-5 days		$42	- +
CH-31906	CH-31906	FORK FRONT SWIVEL 3-5 days		$33	- +
CH-31925	CH-31925	AXLE FOR FRONT WHEEL (INCLUDES NUT) 3-5 days		$15	- +
CH-31927	CH-31927	AXLE FOR REAR WHEEL (INCLUDES WASHERS & NUT) 3-5 days		$20	- +
CH-31929	CH-31929	BEARING & SPACER FOR FRONT WHEEL 3-5 days	SET	$23	- +
CH-31933	CH-31933	BEARING & SPACER FOR FRONT SWIVEL FORK 3-5 days	SET	$23	- +
CH-31934	CH-31934	COVER FOR FRONT SWIVEL FORK NUT/BEARINGS 3-5 days		$16	- +
CH-31935	CH-31935	TIP FOR BRAKE HANDLE 3-5 days		$19	- +
CH-31936	CH-31936	SLEEVE FOR FOLDING MECHANISM 3-5 days		$140	- +
CH-32705	CH-32705	SCREW FOR CROSSBAR (INCLUDES WASHER, NUT & SPRING) 3-5 days		$140	- +
CH-37708	CH-37708	BRAKE LEFT (INCLUDES SCREW, WASHER & NUT) 3-5 days		$29	- +
CH-37709	CH-37709	BRAKE RIGHT (INCLUDES SCREW, WASHER & NUT) 3-5 days		$29	- +
CH-37710	CH-37710	FOLDING MECHANISM FOR HANDLE Leaves Warehouse in 1-2 days		$29	- +
CH-37713	CH-37713	Grip for Handle 3-5 days	PAIR	$140	- +
CH-37714	CH-37714	TOE KICK 3-5 days		$21	- +
CH-37715	CH-37715	SCREW FOR HANDLE & FOLDING MECHANISM 3-5 days	PAIR	$140	- +
CH-37717	CH-37717	PIN FOR FOOT REST 3-5 days	PAIR	$19	- +
CH-37718	CH-37718	KNOB FOR FOOT REST 3-5 days		$20	- +
CH-37724	CH-37724	LEVER FOR FOLDING MECHANISM 3-5 days		$140	- +
CH-37725	CH-37725	BEARING & SPACER FOR REAR WHEEL 3-5 days	SET	$23	- +
CH-37728	CH-37728	CAP FOR FOOT REST 3-5 days		$140	- +
CH-37729	CH-37729	RELEASE PIN FOR FOLDING MECHANISM 3-5 days		$140	- +
CH-37730	CH-37730	SCREW FOR UPHOLSTERY 3-5 days	PAIR	$140	- +
CH-37731	CH-37731	WASHER FOR UPHOLSTERY 3-5 days	PAIR	$140	- +
CH-T1000	CH-T1000	TOOLS 3-5 days	SET	$140	- +
CT-SB100	CT-SB100	SEAT BELT 3-5 days		$33	- +
