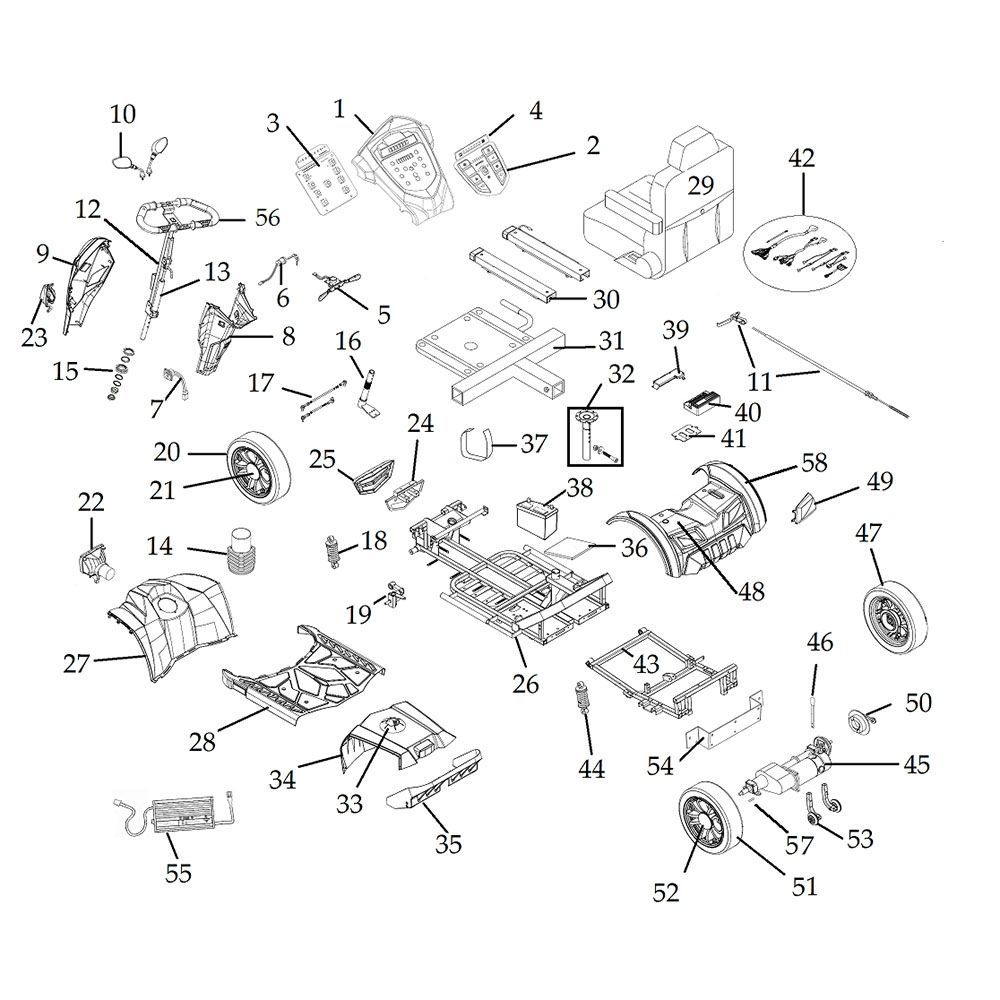

Parts for Cobra GT4

Grouped product items
Position	Pos.	SKU	Notes	Price	Qty
1	S08-062-00165	Upper Tiller Cover Leaves Warehouse in 1-2 days	$413.00	- +
2	C10-062-00200	Control Panel Overlay Leaves Warehouse in 1-2 days	$41.00	- +
3	C10-051-00507	Tiller PC Board Leaves Warehouse in 1-2 days	$303.00	- +
4	C10-062-00300	Battery Indicator Overlay Leaves Warehouse in 1-2 days	$27.00	- +
5	S12-051-00100	Throttle Leaves Warehouse in 1-2 days	$302.00	- +
6	C18-001-01501	Key Switch Leaves Warehouse in 1-2 days	$44.00	- +
6	C37-001-02300	Key Leaves Warehouse in 1-2 days	$27.00	- +
7	C12-051-00200	Charger Port Leaves Warehouse in 1-2 days	$27.00	- +
8	S08-062-00300	Rear Tiller Cover Leaves Warehouse in 1-2 days	$181.00	- +
9	S08-062-00477	Front Tiller Cover Grey Leaves Warehouse in 1-2 days	$436.00	- +
10	S37-062-00177	Mirror Set Grey Leaves Warehouse in 1-2 days	$156.00	- +
11	S35-062-00100	Hand Brake Assembly Leaves Warehouse in 1-2 days	$154.00	- +
11	C35-045-00300	Brake Handle Leaves Warehouse in 1-2 days	$31.00	- +
11	S35-062-00300	Cable Assembly Leaves Warehouse in 1-2 days	$132.00	- +
11	C35-062-00101	Brake Cable Leaves Warehouse in 1-2 days	$27.00	- +
12	S02-062-00100	Tiller Assembly Leaves Warehouse in 1-2 days	$469.00	- +
13	C02-029-00200	Tiller Tilt Cylinder Leaves Warehouse in 1-2 days	$86.00	- +
14	C25-052-00100	Tiller Boot Leaves Warehouse in 1-2 days	$30.00	- +
15	S02-001-00601	Tiller Bearing Set Leaves Warehouse in 1-2 days	$25.00	- +
16	S03-029-00200	L Steering Axle Leaves Warehouse in 1-2 days	$83.00	- +
17	S03-062-00100	Tie Rod Set Leaves Warehouse in 1-2 days	$133.00	- +
18	C03-062-00300	Front Shock Absorber 150# Leaves Warehouse in 1-2 days	$42.00	- +
19	C03-022-02108	Shock Absorber Arm Assy. Rt Leaves Warehouse in 1-2 days	$124.00	- +
19	C03-022-02208	Shock Absorber Arm Assy. Lt Leaves Warehouse in 1-2 days	$124.00	- +
20	S05-062-00300	Front Wheel Assy. Leaves Warehouse in 1-2 days	$299.00	- +
22	C13-062-00100	Headlight Assy. Leaves Warehouse in 1-2 days	$134.00	- +
23	C15-062-00102	Front Signal Light Rt. Leaves Warehouse in 1-2 days	$98.00	- +
23	C15-062-00502	Front Signal Light Lt. Leaves Warehouse in 1-2 days	$98.00	- +
24	C01-062-00300	Front Bumper Leaves Warehouse in 1-2 days	$74.00	- +
25	C08-062-00501	Front Bumper Cover Leaves Warehouse in 1-2 days	$61.00	- +
26	S01-062-00100	Front Frame Leaves Warehouse in 1-2 days	$753.00	- +
27	S08-062-00277	Front Shroud Grey Leaves Warehouse in 1-2 days	$661.00	- +
28	S08-062-00777	Middle Shroud Grey Leaves Warehouse in 1-2 days	$198.00	- +
29	S07-062-00100	Seat Assembly 20" with Arms Leaves Warehouse in 1-2 days	$1,252.00	- +
29	S07-062-0020	Seat Assembly 22" with Arms 3-5 days	$0.00	- +	Please call or Send Request For Information
32	C07-005-00900	Seat Post Leaves Warehouse in 1-2 days	$58.00	- +
33	C25-039-00100	Seat Post Boot Leaves Warehouse in 1-2 days	$27.00	- +
34	S08-062-00677	Main Battery Shroud Grey Leaves Warehouse in 1-2 days	$392.00	- +
35	C08-062-01600	Rear Battery Shroud Leaves Warehouse in 1-2 days	$83.00	- +
36	C25-022-00500	Rubber Battery Pad Leaves Warehouse in 1-2 days	$25.00	- +
37	C31-029-00101	Battery Strap Leaves Warehouse in 1-2 days	$25.00	- +
39	C26-051-00501	Controller Cover Leaves Warehouse in 1-2 days	$25.00	- +
40	C10-029-00400	Controller 160 amp Leaves Warehouse in 1-2 days	$638.00	- +
41	S10-062-00100	Controller Holder Leaves Warehouse in 1-2 days	$43.00	- +
42	S18-062-00400	Wire Harness Leaves Warehouse in 1-2 days	$542.00	- +
43	S01-062-00200	Rear Frame Leaves Warehouse in 1-2 days	$356.00	- +
44	C04-062-00200	Rear Shock Absorber 1050# Leaves Warehouse in 1-2 days	$353.00	- +
45	S09-062-00400	Motor-Brake-Transaxle Assy. Leaves Warehouse in 1-2 days	$1,932.00	- +
45	C09-062-02100	Trans Axle Leaves Warehouse in 1-2 days	$823.00	- +
45	C09-062-02000	Motor Leaves Warehouse in 1-2 days	$919.00	- +
45	C09-022-02300	Motor Brush Leaves Warehouse in 1-2 days	$27.00	- +
45	C09-022-02700	Motor Brush Cap Leaves Warehouse in 1-2 days	$25.00	- +
45	C09-062-01100	Electro-Magnetic Brake Leaves Warehouse in 1-2 days	$459.00	- +
46	C09-062-00903	Freewheel Lever Leaves Warehouse in 1-2 days	$25.00	- +
48	S06-062-00600	Rear wheel Assy Lt. Leaves Warehouse in 1-2 days	$322.00	- +
48	C06-051-00100	Tire Leaves Warehouse in 1-2 days	$97.00	- +
48	C06-051-00201	Tube Leaves Warehouse in 1-2 days	$45.00	- +
49	C26-060-00501	Hub Cap Leaves Warehouse in 1-2 days	$27.00	- +
50	C06-022-02600	Brake Pad Assy. Leaves Warehouse in 1-2 days	$97.00	- +
51	S08-062-00577	Rear Shroud Grey Leaves Warehouse in 1-2 days	$711.00	- +
52	C14-062-00201	Rear Signal Light Rt. Leaves Warehouse in 1-2 days	$174.00	- +
52	C14-062-00301	Rear Signal Light Lt. Leaves Warehouse in 1-2 days	$174.00	- +
53	S28-062-00100	Anti-Tipper Wheel Leaves Warehouse in 1-2 days	$41.00	- +
54	C01-062-01201	Rear Bumper Leaves Warehouse in 1-2 days	$49.00	- +
55	C12-005-00800	8 Amp Charger Leaves Warehouse in 1-2 days	$627.00	- +
56	C02-062-00101	Handle Bar (fits either Lt or Rt side) Leaves Warehouse in 1-2 days	$79.00	- +
57	29002W7011	Motor Axle Key Leaves Warehouse in 1-2 days	$49.00	- +
	C0706202177	Rear Shroud Decoration Left 3-5 days	$0.00	- +	Please call or Send Request For Information
	C0806202077	Rear Shroud Decoration Right 3-5 days	$0.00	- +	Please call or Send Request For Information
	C07-016-00600	Seat Slide Set Leaves Warehouse in 1-2 days	$95.00	- +
	S06-062-00700	Rear Wheel Assy.Rt. Leaves Warehouse in 1-2 days	$323.00	- +
